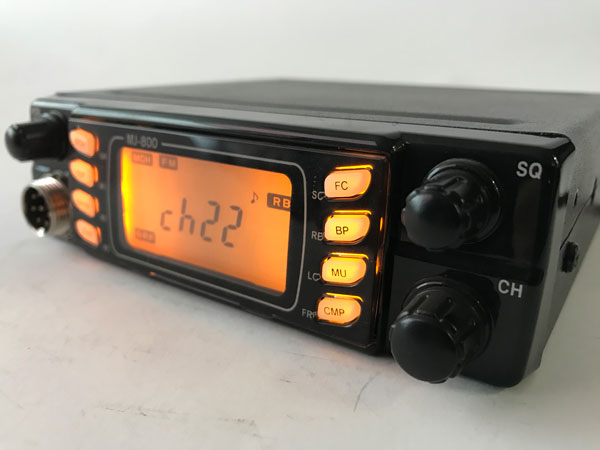

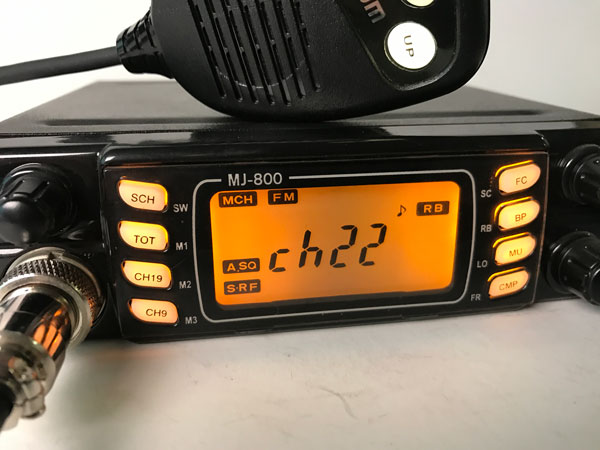

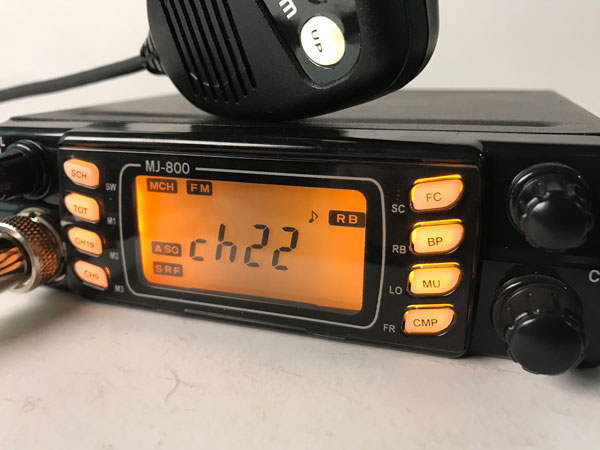

PRO-800










PRO-800

40 CH AM/FM CB TRANSCEIVER BLACK



FEATURE



FUNCTION
1. SCH / SW  SWITCH
2. TOT / M1 SWITCH
3. AM.FM  / M2 SWITCH
4. CH9 / M3 SWITCH(RESET)
5. FUNCTION / SCAN SWITCH
6. BEEP / RB SWITCH
7. SP MUTE /LOCAL SWITCH
8. LCR / FREQUENCY SWITCH

CONTROLS
1. AF VOLUM ¹× ON/OFF SW
2. SQUELCH VOLUME
3. CHANNEL SW

LCD DISPLAY




3.5 PIE EXT SPEAKER JACK
M-TYPE ANT CONNECTOR / 6 PIN MIC JACK

- PTT SW
- MIC UP / DOWN SW
- DY
-
MICROPHONE
- DC 12V TERMINAL
BILT IN NOISE LIMIT
DIMENSION : D-140mm . W-125mm . H-42mm.





ELECTRICAL



GENERAL
        @ TRANSMITTER......... CRSTAL CONTROLLED PLL SYNTHESIZER
        @ RECEIVER.................... DOUBLE CONVERSION, SUPERHETERODYNE SYSTEM
        @ VOLTAGE OPERATION......... DC 13.8 V
        @ TEMPERATURE........................ -10 ¡É ¡­ +50 ¡É
        @ CHANNEL STEP ..................... 10 Khz

TRANSMITTER
@ OUTPUT POWER........................... FM/AM :  4WATTS
*OPTION : FM 10W , AM :8W
*EU     : FM 9W ,  AM7W

@ FREQUENCY RANGE................... 26.965 ¡­ 27.405 MHz
* OPTION 240 CH :25.615 ~ 28.305MHz(6 BAND)

@ FREQUENCY TOLERANCE........ +-300 Hz
@ MODULATION SENS.................... 3mv(1.25KHz INPUT)
@ MODULATION CAPABLITY...... AM : 90 %
FM : 2 KHz

RECEIVER
@ SENSITIVITY.................................... AM : 0.5 uV(S/N 10dB)
FM : 0.3 uV (SINAD12dB)
@ SQUELCH............................................  0.5 uV
@ AUTO SQUELCH.............................  0.3 uV
@ S/N RATIO.........................................  40 dB
@ DISTORTION.....................................  3 %
@ MAX POWER....................................  4 WATTS
@ S/METER(S-9)..................................   100  uV

TEST CONDITION
@ POWER SOURCE............................. DC 13.8 VOLTS
@ ANT LOAD IMPEDANCE............ 50 ohm NON-INDUCTIVE
@ AUDIO LOAD IMPEDANCE.......  8 ohm
